Grafcet Designer by Emmanuel Geveaux Software - Toolkit for LabVIEW Download
GRAFCET (aka Sequential Function Chart) add-on for LabVIEW
Discussion
| Version | 2.1.3.54 |
| Released | Jun 02, 2025 |
| Publisher | Emmanuel Geveaux Software |
| License | Grafcet Designer EULA |
| LabVIEW Version | LabVIEW>=19.0 |
| Operating System | Windows, Mac, and Linux |
| Project links | Homepage Documentation Discussion |
Description

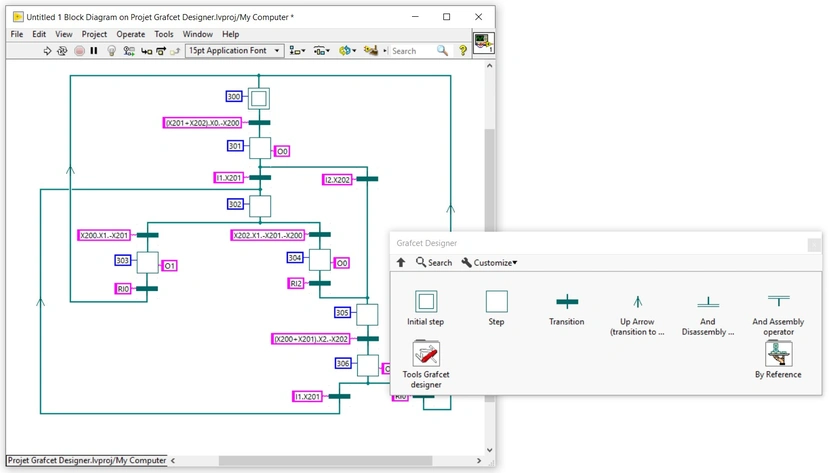

This Add-on for LabVIEW 2019 and later allows to edit and execute GRAFCET or Sequential Function Chart in LabVIEW Diagrams.
This is a design and control tool.
Evaluation and activable version. Please be sure to get the latest version of Grafcet Designer on :
www.grafcetview.com
Release Notes
2.1.3.54
(Jun 02, 2025)
Error window bug fixed.
Be sure to get the latest version of Grafcet Designer on :
www.grafcetview.com
manubzh
was a contributor to this release
