JSONtext by JDP Science - Toolkit for LabVIEW Download

Fast JSON Library

Discussion Watch

24

29,932

screenshot

Version	1.8.2.122
Released	Jan 22, 2024
Publisher	JDP Science
License	BSD
LabVIEW Version	LabVIEW>=17.0
Operating System	Windows, Mac, and Linux
Used By	blue_origin_lib_runlog_opensource pnr_lib_jsontext_object_serialization sas_lib_approval_tests brent_justice_lib_blueplotmulti_(open_source) blue_origin_lib_bluejsontextserializer neosoft_technologies_lib_neosoft_dhcp_server tsa_lib_lvabs_shared_variable samangh_lib_wamplv_wamp_client pantherlab_lib_firebase_api tag_engine ox_origin_state_machine_pipes tsa_lib_abstract_data_classes blue_origin_lib_blueplot_(open_source) tsa_lib_abstract_function_classes
Project links	Homepage Repository Discussion

Description

JSONtext is a library intended to make working with JSON in LabVIEW easy, fast and flexible. It is based on high-speed text parsing, and does not involve any kind of intermediate representation of the JSON (the only thing passed between functions are JSON text strings).

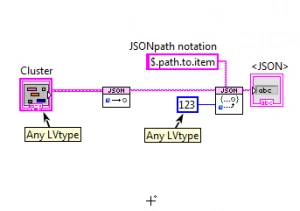

Supports searching for elements in the JSON using JSON Path notation (example '$.Users[*].Name').

Extensive support for converting to/from LabVIEW types. Can use tag in cluster element names to identify strings that should retain JSON format.

Allows formating JSON using "Pretty Print".

As extension to standard JSON, will allow Comments.

Note: On Windows 10, it may be necessary to run VI Package Manager "as an administrator" in order to install the VI Package.

Release Notes

1.8.2.122 (Jan 22, 2024)

Support for JSON Schema: https://json-schema.org/
tags support for UTF8 in LabVIEW
UTF-8 to/from JSON functions

1.8.1.121 (Dec 01, 2023)

Initial Support for JSON Schema: https://json-schema.org/
tags support for UTF8 in LabVIEW

1.7.0.118 (Feb 08, 2023)

-->Issue #111: Full Unicode support for \uXXXX format
-->Issues#110,113
-->Issue#118 Ctrl Refnums to/from JSON functions
-->Issue#114 tag allows Maps with String keys to export as JSON Objects

1.6.10.113 (May 27, 2022)

New Pretty Print and Minify methods (faster than Reformat and support Comments)
Config-File use-case methods (preserve comments and allow multiple Writers without race conditions)
Set and Map support (for LabVIEW 2019+)
1.6.6 --> Issue #92 fix for Set/Map support
1.6.7--> Peformance improvements, no behaviour change
1.6.8--> #97: LVObjects not working on Linux
1.6.9--> #94: Add Pretty Print Levels to new Pretty Print
1.6.10--> Internal rework, mostly to avoid using inbuilt JSON primative for converting arrays, or to avoid unnecessary copies. Bugfixes. Issues #96,98,99,100,101,102,104,106

james-powell was a contributor to this release

1.6.9.111 (Mar 03, 2022)

New Pretty Print and Minify methods (faster than Reformat and support Comments)
Config-File use-case methods (preserve comments and allow multiple Writers without race conditions)
Set and Map support (for LabVIEW 2019+)
1.6.6 --> Issue #92 fix for Set/Map support
1.6.7--> Peformance improvements, no behaviour change
1.6.8--> #97: LVObjects not working on Linux
1.6.9--> #94: Add Pretty Print Levels to new Pretty Print

james-powell was a contributor to this release

1.6.7.107 (Nov 18, 2021)

New Pretty Print and Minify methods (faster than Reformat and support Comments)
Config-File use-case methods (preserve comments and allow multiple Writers without race conditions)
Set and Map support (for LabVIEW 2019+)
1.6.6 --> Issue #92 fix for Set/Map support
1.6.7--> Peformance improvements, no behaviour change

james-powell was a contributor to this release

1.6.5.105 (Jun 28, 2021)

New Pretty Print and Minify methods (faster than Reformat and support Comments)
Config-File use-case methods (preserve comments and allow multiple Writers without race conditions)
Set and Map support (for LabVIEW 2019+)

james-powell was a contributor to this release

1.5.4.98 (Apr 07, 2021)

#77: Comments accepted in input in /*inline*/ and //end_line forms
#78: Permissive treatment of commas (following HJSON) to handle common User error
#81: More compact LVObject default representation (using Base64url)
#56: Hook to allow custom flattening of LabVIEW Objects
#67: Get single element as 1-element LabVIEW array
#65: redo error codes for conversion errors
#58: dynamic-sized JSON Object from Array-of-Clusters with tag
#79: Pretty Print to use Line Feed rather than Carriage Return as line-end character
Other Issues: #72,#73,#80

james-powell was a contributor to this release

1.4.5.91 (Dec 01, 2020)

#69: Deprecated From JSON VIS broken, causing build failures

james-powell was a contributor to this release

1.4.4.89 (Sep 29, 2020)

Custom Error codes
Improved Timestamp support (RFC3339)
Bitbucket Issues resolved:
#31: Support fixed-point numbers
#32: Add “Is Empty” function
#33: Add "Not Equivalent" function (to compare two JSON Values)
#60: Support insert at end of array, [#] notation
#48: "Flatten SubClusters to JSON" special functions
#55: Conditional Disable, "JSONtext_Strict=True", that forces no use of LabVIEW extensions (NaN, Infinity)
#59: Periods (.) in JSONpath item names
#65: Improved errors on failure to convert to LabVIEW type
Also #34, #37, #40, #52, #53, #61

james-powell was a contributor to this release

1.3.1.84 (May 01, 2019)

Add JSONtext menus as submenu of Flatten to String menu.

james-powell was a contributor to this release

1.2.13.82 (Feb 19, 2019)

link to mnu file
Extended Help on all API functions (except VIMs, due to LabVIEW build bug)
Delete.vi replaces "Delete from Object.vi" (more capable)
Fix issue with computers that use comma as decimal
Workaround VIPM issue with VIMs in VIMs
Flatten to/from Array of JSONpath functions
Fix issue with -Infinity becoming +Inf in LabVIEW DBL/SGL
Fix several minor issues
Support 3D numeric arrays in JSON to LV type
Fix issues on VxWorks targets (warning: cannot support \u0000 zero codes)
Added ExtendedHelp to VIMS (WARNING: Known issue (15) with LabVIEW 2017; use SP1f1)

james-powell was a contributor to this release

1.2.11.78 (Sep 27, 2018)

link to mnu file
Extended Help on all API functions (except VIMs, due to LabVIEW build bug)
Delete.vi replaces "Delete from Object.vi" (more capable)
Fix issue with computers that use comma as decimal
Workaround VIPM issue with VIMs in VIMs
Flatten to/from Array of JSONpath functions
Fix issue with -Infinity becoming +Inf in LabVIEW DBL/SGL
Fix bug in Find by Path (Issue 23)
Support 3D numeric arrays in JSON to LV type

james-powell was a contributor to this release

1.2.10.74 (May 04, 2018)

link to mnu file
Extended Help on all API functions (except VIMs, due to LabVIEW build bug)
Delete.vi replaces "Delete from Object.vi" (more capable)
Fix issue with computers that use comma as decimal
Workaround VIPM issue with VIMs in VIMs
Flatten to/from Array of JSONpath functions
Fix issue with -Infinity becoming +Inf in LabVIEW DBL/SGL

james-powell was a contributor to this release

1.2.9.73 (Jan 25, 2018)

link to mnu file
Extended Help on all API functions (except VIMs, due to LabVIEW build bug)
Delete.vi replaces "Delete from Object.vi" (more capable)
Fix issue with computers that use comma as decimal
Workaround VIPM issue with VIMs in VIMs
Flatten to/from Array of JSONpath functions

james-powell was a contributor to this release

1.2.5.69 (Oct 27, 2017)

link to mnu file
Extended Help on all API functions (except VIMs, due to LabVIEW build bug)
Delete.vi replaces "Delete from Object.vi" (more capable)

james-powell was a contributor to this release

Show all release notes (+15 more releases)
