IG OOPanel by Illuminated G - Toolkit for LabVIEW Download

Object Oriented UI Panel Library that also serves as a dynamic custom array UI

Discussion Watch

2

1,306

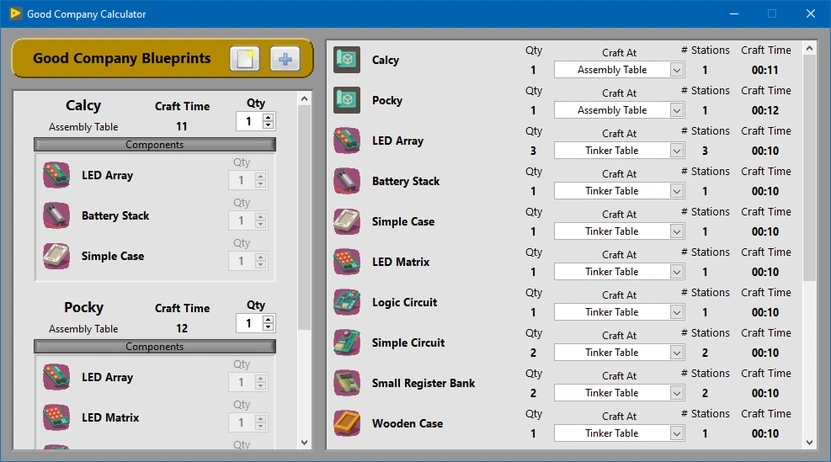

screenshot

Version	0.5.1.38
Released	Nov 07, 2024
Publisher	Illuminated G
License	MIT
LabVIEW Version	LabVIEW>=20.0
Operating System	Windows, Mac, and Linux
Used By	brent_justice_lib_blueplotmulti_(open_source) summer_of_labview_squarebattle
Project links	Homepage Discussion

Description

Provides an OOP based panel UI manager and also includes functionality for simulating arrays with these Panels for highly flexible dynamic UI content. This library is not based on any existing framework (DQMH, AF, etc.) and can be used as part of any UIs being developed.

Panels are run as asynchronous VIs so this approach is not suitable when a LOT of elements are needed. For a faster performing, more light-weight library when lots of elements are needed in an array-like UI check out the ControlArray package.

Panel management includes moving VI panels around different subpanels, popping subpanel contents out as standalone windows, and toggling the visiblity of a panel. The panel manager keeps track of the state of panels so it can ensure that panels are removed from subpanels before another is inserted.

Release Notes

0.5.1.38 (Nov 07, 2024)

0.5.1.38
- Ensure panels cleared from display are removed from subpanels and subpanels returned to available queue
0.5.0.37
- Add ability to clear out 2D array so elements can be filtered / reorganized.

derrickb was a contributor to this release

0.5.0.37 (Nov 07, 2024)

0.5.0.37
- Add ability to clear out 2D array so elements can be filtered / reorganized.
0.4.2.36
- Specify a number of blanks to pre-populate into the reusable blank pool
0.4.1.35
- Fixed layout handling of blank panels
0.4.0.34
- Added ability to specify a panel to use for empty element locations.

derrickb was a contributor to this release

0.4.2.36 (Apr 17, 2024)

0.4.2.36
- Specify a number of blanks to pre-populate into the reusable blank pool
0.4.1.35
- Fixed layout handling of blank panels
0.4.0.34
- Added ability to specify a panel to use for empty element locations.

derrickb was a contributor to this release

0.4.1.35 (Apr 17, 2024)

0.4.1.35
- Fixed layout handling of blank panels
0.4.0.34
- Added ability to specify a panel to use for empty element locations.
0.3.2.33
- Set subpanels invisible once emptied so they don't block mouse interactions
0.3.1.32
- Fix visible area calculation when scrollbars aren't visible
0.3.0.31
- New 2DArrayManager for scrollable grid layouts

derrickb was a contributor to this release

0.4.0.34 (Apr 16, 2024)

0.4.0.34
- Added ability to specify a panel to use for empty element locations.
0.3.2.33
- Set subpanels invisible once emptied so they don't block mouse interactions
0.3.1.32
- Fix visible area calculation when scrollbars aren't visible
0.3.0.31
- New 2DArrayManager for scrollable grid layouts

derrickb was a contributor to this release

0.3.2.33 (Apr 15, 2024)

0.3.2.33
- Set subpanels invisible once emptied so they don't block mouse interactions
0.3.1.32
- Fix visible area calculation when scrollbars aren't visible
0.3.0.31
- New 2DArrayManager for scrollable grid layouts

derrickb was a contributor to this release

0.3.1.32 (Apr 15, 2024)

0.3.1.32
- Fix visible area calculation when scrollbars aren't visible
0.3.0.31
- New 2DArrayManager for scrollable grid layouts

derrickb was a contributor to this release

0.3.0.31 (Apr 15, 2024)

0.3.0.31
- New 2DArrayManager for scrollable grid layouts
0.2.1.30
- Shared reentrancy for VIs that can be blocked by DVR locks or DD calls
0.2.0.28
- Ability to scroll a panel by index fully into view at the closest edge or align with the top if it is bigger than the view.

derrickb was a contributor to this release

0.2.3.31 (Oct 24, 2023)

0.2.3.31
- Filter mousewheel events so nested scrollable arrays only trigger the inner-most panel the mouse is over.
0.2.2.30
- Embiggen Panel BD Template
- Move close state reporting outside of loop in BD Template for better nesting behavior
- Ensure ArrayManager cleanup disposes contained panels

derrickb was a contributor to this release

0.2.2.30 (Oct 13, 2023)

0.2.2.30
- Embiggen Panel BD Template
- Move close state reporting outside of loop in BD Template for better nesting behavior
- Ensure ArrayManager cleanup disposes contained panels
0.2.1.29
- Shared reentrancy for VIs that can be blocked by DVR locks or DD calls
0.2.0.28
- Ability to scroll a panel by index fully into view at the closest edge or align with the top if it is bigger than the view.

derrickb was a contributor to this release

0.2.1.30 (Jun 15, 2023)

0.2.1.30
- Shared reentrancy for VIs that can be blocked by DVR locks or DD calls
0.2.0.28
- Ability to scroll a panel by index fully into view at the closest edge or align with the top if it is bigger than the view.
0.2.0.26
- Added API to tell a manager a subpanel is not visible (such as in a nested panel or tab page) to forward that event to an inserted panel.
- Updated palettes with missing VIs
0.2.0.24
- Finish wiring up Has Panel? output on Get Panel from SubPanel.
- Fix LabVIEW linker error with Close Reason enumeration in a panel's Close event.

derrickb was a contributor to this release

0.2.0.28 (Mar 02, 2023)

0.2.0.28
- Ability to scroll a panel by index fully into view at the closest edge or align with the top if it is bigger than the view.
0.2.0.26
- Added API to tell a manager a subpanel is not visible (such as in a nested panel or tab page) to forward that event to an inserted panel.
- Updated palettes with missing VIs
0.2.0.24
- Finish wiring up Has Panel? output on Get Panel from SubPanel.
- Fix LabVIEW linker error with Close Reason enumeration in a panel's Close event.

derrickb was a contributor to this release

0.2.0.26 (Feb 12, 2023)

0.2.0.26
- Added API to tell a manager a subpanel is not visible (such as in a nested panel or tab page) to forward that event to an inserted panel.
- Updated palettes with missing VIs
0.2.0.24
- Finish wiring up Has Panel? output on Get Panel from SubPanel.
- Fix LabVIEW linker error with Close Reason enumeration in a panel's Close event.

derrickb was a contributor to this release

0.2.0.24 (Feb 09, 2023)

0.2.0.24
- Finish wiring up Has Panel? output on Get Panel from SubPanel.
- Fix LabVIEW linker error with Close Reason enumeration in a panel's Close event.

derrickb was a contributor to this release

0.2.0.23 (Feb 12, 2022)

- Removed need to specify DisplayAs panel type after discovering App's LVClass->Get Implementing VI method that can programmatically determine dynamic dispatch so now inheritence JustWorks™

0.1.0.24 (Feb 09, 2023)

0.1.0.24
- Finish wiring up Has Panel? output on Get Panel from SubPanel.
- Fix LabVIEW linker error with Close Reason enumeration in a panel's Close event.

derrickb was a contributor to this release

0.1.0.22 (Feb 05, 2022)

- Fix missing reference cleanup in ArrayManager.
- Have panels startup opened but hidden so that nested array panels can register events that require owner panel to be open.
- Add ability to set panel to transparent or colored.
- Mark Source-only for all VIs
- Provide Close Panel function for ArrayManager

derrickb was a contributor to this release
