Property Inspector by ABCDEF - Toolkit for LabVIEW Download
This utility allows filtering, searching, sorting and batch editing of 44 VI properites and metrics
Discussion
| Version | 5.0.1.148 |
| Released | Nov 19, 2024 |
| Publisher | ABCDEF |
| License | EULA |
| LabVIEW Version | LabVIEW>=19.0 |
| Operating System | Windows |
| Project links | Homepage Discussion |
Description
Note: Both LabVIEW and VIPM must be running as administrator to install this utility.
Requires VIPM 2019 or later

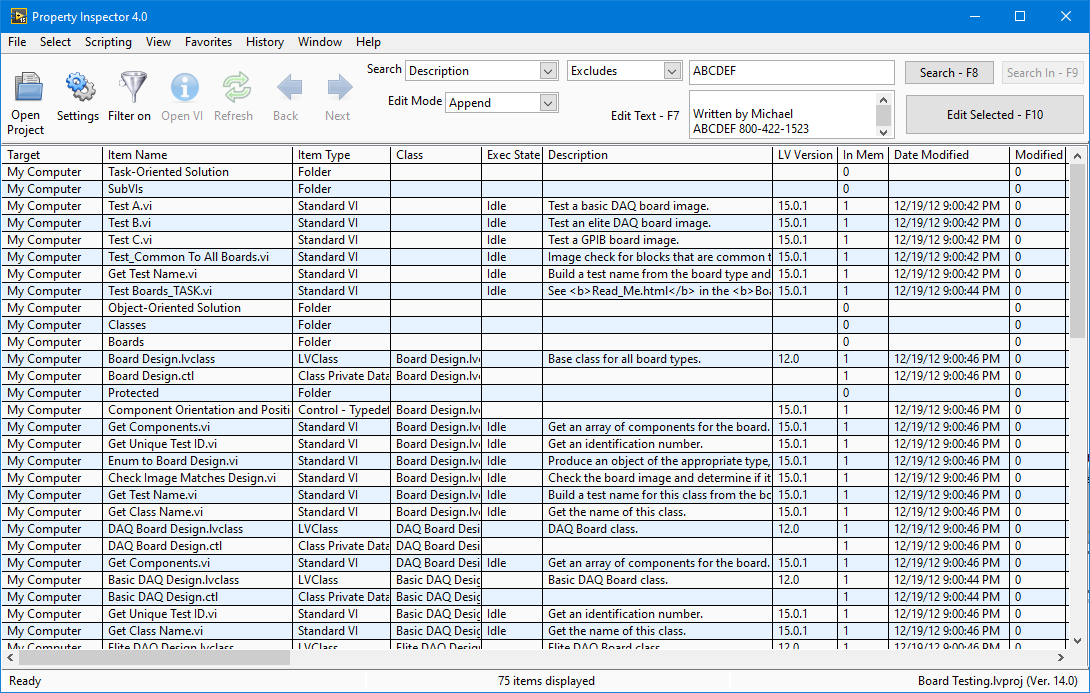

The Property Inspector Utility reads your project and allows filtering, searching, sorting and batch editing of VI properties including Description, Data Size, Reentrancy, In memory and Allow Debugging. Filter the results by 20 object types. Search items based on 44 properties and 11 criteria with compound searches. Use Global Exclusion™ to search out tagged items. Specify one of 5 edit criteria and batch edit 23 properties of hundreds of VIs. Persistent Selection™ keeps items highlighted when filtering, searching and sorting. Static Selection™ keeps highlighted items visible in the window when searching and sorting. Keeps a history of the last 9 searches and a custom list of your 12 Favorite compound searches.
Additionally, VIs can be sorted by VI metrics to analyze the entire project for issues that would be very hard to find. The resulting list can be exported for further analysis.
Quickly show dozens of block diagrams and close them all in a single click. Alternately open the first clones and set the Retain Wire Values always on. Arrange just the block diagrams using cascade, tile and stack options. Intelligent refresh automatically updates VI objects in the background.
Multiple selections can be highlighted in the Project Explorer window or reverse selected. Easily select all open windows. Perform a search of just selected objects and select them again separately. Select blocks of items by Group Size and easily select the next group. Revert back to the previous selection at any time.
Use VI Scripting or Quick Drop plugins to add unlimited custom search and edit operations to multiple objects quickly. A history allows repeating the last 9 of each script. Delete multiple items from the project and the disk and delete all orphan items below the project folder.
Macros can automate repetitive operations and supports CLI. Enable Logging to record steps, timing, quantities and individual property results. Use the PI5 Macros dialog to automate complex operations headlessly with the PI5 window minimized.
Multiple projects can be built in parallel and synchronized with PI Instances. Unlimited parameters can be passed to macros from other macros or a batch file.
This version supports multiple targets including cRIO and FPGA.
Tested LabVIEW Versions: 2019, 2020, 2021, 2022, 2023 and 2024
Release Notes
Added Save and Load selection to named file
Added VI Script errors to Log
Added Log10 to include 0.1 seconds to timestamps
Added Delay option to Instances
Added Status bar message for select all, none and invert
Added PI Status to display messages during macros
Added Macro Editor DIR functions to double click and Execute
Added current subdirectory to PI5 Macros title bar
Added Protection editing to Controls
Added preset macro parameters: %Date, %Name, %Path, PI5M, and %Time
Added check if Called Macro is relative to the default macro directory
Added "%1" to all generated batch files
Improved Macro Editor insertion of CR
Disables Object Filter group on Show All Objects enabled
Fixed Retain Wire Values failure showing as Not all elements could be opened
Fixed macro %Parameter limit of 9
Fixed close seleted windows clears close opened windows
